TSparseMatrix< T_value > Class Template Reference

Class for a sparse matrix stored in compressed row storage format.

#include <TSparseMatrix.hh>

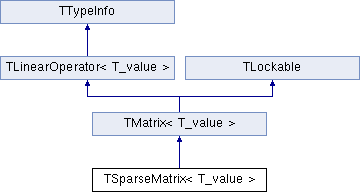

Inheritance diagram for TSparseMatrix< T_value >:
TMatrix< T_value > TLinearOperator< T_value > TLockable TTypeInfo

Public Member Functions

 TSparseMatrix (const size_t anrows, const size_t ancols)
 construct sparse matrix of size anrows × ancols

 TSparseMatrix (const TIndexSet arow_is, const TIndexSet acol_is)
 construct sparse matrix of size anrows × ancols

 TSparseMatrix (const TBlockCluster *bct=nullptr)
 construct sparse matrix with size defined by block cluster bct

virtual void set_cluster (const TBlockCluster *bct)
 set block cluster of matrix

virtual void set_size (const size_t nrows, const size_t ncols)
 directly set dimension of matrix

void init (const size_t nnz)
 initialise CRS data for nnz non-zero entries

size_t rows () const
 return number of rows in matrix

size_t cols () const
 return number of columns in matrix

size_t n_non_zero () const
 return number of non-zero elements

const idx_t * rowptr () const
 return row pointer array

const idx_t * colind () const
 return column index array

virtual value_t entry (const idx_t i, const idx_t j) const
 return matrix coefficient a_ij

virtual void set_entry (const idx_t i, const idx_t j, const value_t c)
 set matrix coefficient a_ij if existent

virtual void add_entry (const idx_t i, const idx_t j, const value_t c)
 add c to matrix coefficient a_ij if existent

virtual bool has_entry (const idx_t i, const idx_t j) const
 return true if entry (i, j) exists

void sort_entries ()
 sort matrix coefficients per row with respect to column

idx_t rowptr (const idx_t i) const
 return i'th row pointer (constant)

idx_t & rowptr (const idx_t i)
 return i'th row pointer

idx_t colind (const idx_t i) const
 return i'th column index (constant)

idx_t & colind (const idx_t i)
 return i'th column index

value_t coeff (const idx_t i) const
 return i'th coefficient (constant)

value_t & coeff (const idx_t i)
 return i'th coefficient

void permute (const TPermutation &rowperm, const TPermutation &colperm)

bool test_symmetry ()
 return true if matrix is symmetric (really check data)

size_t avg_entries_per_row () const
 compute average number of entries per row

size_t max_entries_per_row () const
 compute maximal number of entries per row

bool has_diag_zero (const real_t eps=0.0)
 return true if matrix contains zero or elements < ε on diagonal

bool is_diag_dom (const bool weak=false)
 return true if S is (weakly) diagonally dominant

real_t diag_dom_factor ()
 return factor α, such that S + α·I is diagonally dominant (this = S)

void check_matrix () const
 perform some tests on the matrix (for debugging)

template<typename T_idx >
void import_crs (const size_t nrows, const size_t ncols, const size_t nnonzero, const T_idx *rowptr, const T_idx *colind, const value_t *coeffs)
 import CRS data into local matrix

template<typename T_idx >
void import_ccs (const size_t nrows, const size_t ncols, const size_t nnonzero, const T_idx *colptr, const T_idx *rowind, const value_t *coeffs)
 import CCS data into local matrix

template<typename T_idx >
void export_ccs (std::vector< T_idx > &colptr, std::vector< T_idx > &rowind, std::vector< value_t > &coeffs, const bool use_sym) const

virtual void scale (const value_t alpha)
 compute this ≔ α·this

virtual void mul_vec (const value_t alpha, const TVector< value_t > *x, const value_t beta, TVector< value_t > *y, const matop_t op=apply_normal) const
 compute y ≔ β·y + α·op(M)·x, with M = this

virtual void add (const value_t alpha, const TMatrix< value_t > *matrix)
 compute this ≔ this + α · matrix

virtual void transpose ()
 transpose matrix

virtual void conjugate ()
 conjugate matrix coefficients

virtual void truncate (const TTruncAcc &)
 truncate matrix to given accuracy (NOT YET IMPLEMENTED)

std::unique_ptr< TSparseMatrix< value_t > > restrict (const TIndexSet &rowis, const TIndexSet &colis) const
 restrict sparse matrix to block index set rowis × colis

std::unique_ptr< TSparseMatrix< value_t > > restrict (const TIndexSet &rowis, const TPermutation *rowperm, const TIndexSet &colis, const TPermutation *colperm) const

size_t restrict_nonzeroes (const TIndexSet &rowis, const TIndexSet &colis) const
 return number of coefficients in sub block index set rowis × colis

size_t restrict_nonzeroes (const TIndexSet &rowis, const TPermutation *rowperm, const TIndexSet &colis, const TPermutation *colperm) const
 return number of coefficients in sub block index set rowis × colis

virtual void print (const uint ofs=0) const
 print matrix to stdout

virtual void read (TByteStream &s)
 read data from stream s and copy to matrix

virtual void build (TByteStream &s)
 use data from stream s to build matrix

virtual void write (TByteStream &s) const
 write data to stream s

virtual size_t bs_size () const
 returns size of object in bytestream

virtual auto create () const -> std::unique_ptr< TMatrix< value_t > >
 return matrix of same class (but no content)

virtual auto copy () const -> std::unique_ptr< TMatrix< value_t > >
 return copy of matrix

virtual auto copy_struct () const -> std::unique_ptr< TMatrix< value_t > >
 return structural copy of matrix

virtual void copy_to (TMatrix< value_t > *A) const
 copy matrix into matrix A

virtual size_t byte_size () const
 return size in bytes used by this object

virtual void check_data () const
 test data for invalid values, e.g. INF and NAN

virtual void print_pattern_hist (std::ostream &os) const
 print histogram for entries per row in GNUPLOT format

- Public Member Functions inherited from TMatrix< T_value >
 TMatrix ()
 construct zero sized matrix

 TMatrix (const TBlockCluster *bcl)
 construct matrix of size defined by block cluster bcl

 TMatrix (const TBlockIndexSet &bis)
 construct matrix of size defined by block index set bis

 TMatrix (const TMatrix< value_t > &A)
 copy constructor

virtual ~TMatrix ()
 dtor

int id () const
 return ID

void set_id (const int aid)
 set ID

virtual size_t nrows (const matop_t op) const
 return number of rows of op(M)

virtual size_t ncols (const matop_t op) const
 return number of columns of op(M)

TIndexSet row_is () const
 return row index set

TIndexSet col_is () const
 return column index set

TBlockIndexSet block_is () const
 return block index set

TIndexSet row_is (const matop_t op) const
 return row index set w.r.t. given matrix operation

TIndexSet col_is (const matop_t op) const
 return row index set w.r.t. given matrix operation

TBlockIndexSet block_is (const matop_t op) const
 return row index set w.r.t. given matrix operation

virtual idx_t row_ofs () const
 return first index (number) in row

virtual idx_t col_ofs () const
 return first index (number) in column

virtual void set_ofs (const idx_t r, const idx_t c)
 set index set offsets

virtual void set_block_is (const TBlockIndexSet &is)
 set block index set of matrix

bool is_nonsym () const
 return true if matrix is unsymmetric

bool is_symmetric () const
 return true if matrix is symmetric

bool is_hermitian () const
 return true if matrix is hermitian

matform_t form () const
 return matrix format

void set_nonsym ()
 set matrix to be unsymmetric

void set_symmetric ()
 set matrix to be symmetric

void set_hermitian ()
 set matrix to be hermitian

virtual void set_form (const matform_t f)
 set matrix format

virtual bool is_zero () const
 return true, if matrix is zero

virtual bool is_blocked () const
 return true, if matrix is blocked

virtual bool is_dense () const
 return true, if matrix is dense

virtual bool is_self_adjoint () const
 return true, if operator is self adjoint

const TProcSetprocs () const
 return matrix processor set

uint nprocs () const
 return number of processors in local set

virtual void set_procs (const TProcSet &ps, const recursion_type_t rec_type=nonrecursive)
 set processor set of matrix

bool is_distributed () const
 return true if matrix is distributed

virtual void copy_struct_from (const TMatrix *M)

TUpdateAccumulator< value_t > & accumulator ()
 access accumulator object

void add_update (const TMatrix< value_t > *M, const TTruncAcc &acc)
 add update matrix

void add_pending_direct (TDirectMatrixUpdate< value_t > *U)
 add update U to set of recursive pending updates

void add_pending_recursive (TRecursiveMatrixUpdate< value_t > *U)
 add update U to set of recursive pending updates

virtual void apply_updates (const TTruncAcc &acc, const recursion_type_t rec_type)

virtual bool has_updates (const recursion_type_t recursion) const
 return true, if matrix has updates not yet applied

virtual bool has_parent_updates (const recursion_type_t recursion) const
 return true, if parent matrix has updates not yet applied

const TBlockClustercluster () const
 return corresponding block cluster of matrix

virtual void set_cluster_force (const TBlockCluster *c)
 set block cluster of matrix (with forced setting of cluster variable)

virtual void apply (const TVector< value_t > *x, TVector< value_t > *y, const matop_t op=apply_normal) const

virtual void apply_add (const value_t alpha, const TVector< value_t > *x, TVector< value_t > *y, const matop_t op=apply_normal) const

virtual void apply_add (const value_t alpha, const BLAS::Vector< value_t > &x, BLAS::Vector< value_t > &y, const matop_t op=apply_normal) const

virtual size_t domain_dim () const
 return dimension of domain

virtual size_t range_dim () const
 return dimension of range

virtual auto domain_vector () const -> std::unique_ptr< TVector< value_t > >
 return vector in domain space

virtual auto range_vector () const -> std::unique_ptr< TVector< value_t > >
 return vector in range space

virtual TMatrix< value_t > * mul_right (const value_t alpha, const TMatrix< value_t > *B, const matop_t op_A, const matop_t op_B) const
 compute α·op(A)·op(B), with A = this

virtual TMatrix< value_t > * mul_left (const value_t alpha, const TMatrix< value_t > *A, const matop_t op_A, const matop_t op_B) const
 compute α·op(A)·op(B), with B = this

virtual size_t global_byte_size () const

virtual auto copy (const TTruncAcc &acc, const bool coarsen=false) const -> std::unique_ptr< TMatrix< value_t > >
 return copy of matrix with accuracy acc and optional coarsening

virtual void copy_from (const TMatrix< value_t > *A)
 copy data from matrix A

virtual void copy_to (TMatrix< value_t > *A, const TTruncAcc &acc, const bool coarsen=false) const
 copy matrix into matrix A with accuracy acc and optional coarsening

virtual auto row_vector () const -> std::unique_ptr< TVector< value_t > >
 return appropriate row vector object for matrix

virtual auto col_vector () const -> std::unique_ptr< TVector< value_t > >
 return appropriate column vector object for matrix

virtual void sum (const TProcSet &p, const uint pid, const uint nparts, TByteStream *bs, const TTruncAcc &acc)

- Public Member Functions inherited from TLinearOperator< T_value >
virtual bool is_complex () const
 return true, if field type is complex valued

virtual bool is_real () const
 return true, if field type is real valued

- Public Member Functions inherited from TTypeInfo
virtual typeid_t type () const =0
 return type ID of object

virtual bool is_type (const typeid_t t) const
 return true if local object is of given type ID t

virtual std::string typestr () const
 return string representation of type

- Public Member Functions inherited from TLockable
TMutexmutex ()
 give access to internal mutex

void lock ()
 lock local mutex

void unlock ()
 unlock local mutex

size_t byte_size () const
 return size in bytes used by this object


Member Function Documentation

◆ export_ccs()

void export_ccs ( std::vector< T_idx > &  colptr,
std::vector< T_idx > &  rowind,
std::vector< value_t > &  coeffs,
const bool  use_sym
) const

export internal data to CCS format (real valued); if use_sym is true, only the lower triangular part is exported

◆ permute()

void permute ( const TPermutation rowperm,
const TPermutation colperm
)

permute entries in sparse matrix according to rowperm (for rows) and colperm (for columns)

◆ restrict()

std::unique_ptr< TSparseMatrix< value_t > > restrict ( const TIndexSet rowis,
const TPermutation rowperm,
const TIndexSet colis,
const TPermutation colperm
) const

restrict sparse matrix to block index set rowis × colis which is given in a different ordering

  • rowperm permutes the row indices to the local ordering of the sparse matrix, while colperm permutes the local column indices to the ordering of colis
  • the returned matrix has the same ordering as rowis and colis
