TFacInvMatrix< T_value > Class Template Referenceabstract
Baseclass for representing the inverse of factorised matrices. More...
#include <TFacInvMatrix.hh>

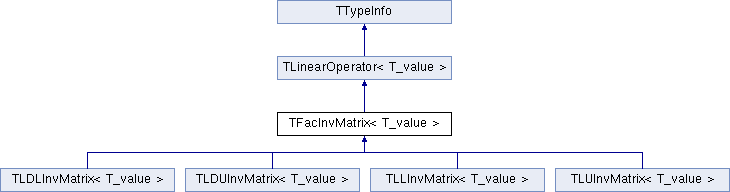

Inheritance diagram for TFacInvMatrix< T_value >:
Public Member Functions | |
| template<typename T_mat > | |
| TFacInvMatrix (T_mat &&afac_matrix, const eval_type_t aeval_type=CFG::Arith::eval_type, const storage_type_t astorage_type=CFG::Arith::storage_type) | |
| template<typename T_mat > | |
| TFacInvMatrix (T_mat &&afac_matrix, const TTruncAcc &aacc, const eval_type_t aeval_type=CFG::Arith::eval_type, const storage_type_t astorage_type=CFG::Arith::storage_type) | |
| template<typename T_mat > | |
| TFacInvMatrix (const TScalarVector< value_t > *D1, T_mat &&afac_matrix, const TScalarVector< value_t > *D2, const eval_type_t aeval_type=CFG::Arith::eval_type, const storage_type_t astorage_type=CFG::Arith::storage_type) | |
| virtual | ~TFacInvMatrix () |
| dtor | |
| const TMatrix< value_t > * | matrix () const |
| access factorised matrix | |
| bool | has_scaling () const |
| return true if diagonal scaling is used | |
| const TScalarVector< value_t > & | scaling_left () const |
| return left scaling matrix | |
| const TScalarVector< value_t > & | scaling_right () const |
| return right scaling matrix | |
| eval_type_t | eval_type () const |
| return evaluation type (pointwise/blockwise) | |
| storage_type_t | storage_type () const |
| return evaluation type (pointwise/blockwise) | |
| const TTruncAcc | accuracy () const |
| return internal accuracy for matrix arithmetic | |
| void | set_accuracy (const TTruncAcc &aacc) |
| set internal accuracy for matrix arithmetic | |
| bool | is_complex () const |
| return true, if field type is complex | |
| bool | is_self_adjoint () const |
| return true, of operator is self adjoint | |
| virtual void | apply (const TVector< value_t > *x, TVector< value_t > *y, const matop_t op=apply_normal) const |
| virtual void | apply_add (const value_t alpha, const TVector< value_t > *x, TVector< value_t > *y, const matop_t op=apply_normal) const |
| virtual void | apply_add (const value_t alpha, const BLAS::Vector< value_t > &x, BLAS::Vector< value_t > &y, const matop_t op=apply_normal) const |
| virtual size_t | domain_dim () const |
| return dimension of domain | |
| virtual size_t | range_dim () const |
| return dimension of range | |
| virtual auto | domain_vector () const -> std::unique_ptr< TVector< value_t > > |
| return vector in domain space | |
| virtual auto | range_vector () const -> std::unique_ptr< TVector< value_t > > |
| return vector in range space | |
 Public Member Functions inherited from TLinearOperator< T_value > | |
| virtual bool | is_real () const |
| return true, if field type is real valued | |
| Public Member Functions inherited from TTypeInfo | |
| virtual typeid_t | type () const =0 |
| return type ID of object | |
| virtual bool | is_type (const typeid_t t) const |
| return true if local object is of given type ID t | |
| virtual std::string | typestr () const |
| return string representation of type | |
Detailed Description
template<typename T_value>
class Hpro::TFacInvMatrix< T_value >
TFacInvMatrix and the derived classes represent operators based on
factorised matrices providing the ability to evaluate the inverse
of the corresponding matrix (in factorised form), e.g. for \f$ A = LU \f$
the inverse \f$ (LU)^{-1} \f$ is applied.
Optionally, diagonal scalings from left and right may have been
applied before the factorisation and now taken into account in the
evaluation.
Constructor & Destructor Documentation
◆ TFacInvMatrix() [1/3]
|
inline |
construct inverse operator with factorised matrix afac_matrix (no diagonal scaling applied)
◆ TFacInvMatrix() [2/3]
|
inline |
construct inverse operator with factorised matrix afac_matrix with accuracy for matrix arithmetic (without diagonal scaling)
◆ TFacInvMatrix() [3/3]
|
inline |
construct inverse operator with factorised matrix afac_matrix and additional row and column scaling factors D1 and D2, e.g. A = D1·Ã·D2, with à = afac_matrix
Member Function Documentation
◆ apply()
|
virtual |
mapping function of linear operator A, e.g. y ≔ A(x). Depending on op, either A, A^T or A^H is applied.
Implements TLinearOperator< T_value >.
◆ apply_add() [1/2]
|
virtual |
same as above but only the dimension of the vector spaces is tested, not the corresponding index sets
Implements TLinearOperator< T_value >.
◆ apply_add() [2/2]
|
virtual |
mapping function with update: y ≔ y + α A( x ). Depending on op, either A, A^T or A^H is applied.
Implements TLinearOperator< T_value >.
