HLIBpro  2.8.1
TGeomCTBuilder Class Referenceabstract

Base class for all cluster tree constructors based on geometry data.

#include <TBSPCTBuilder.hh>

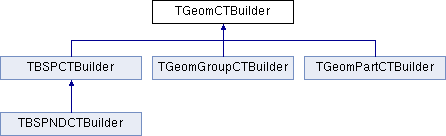

Inheritance diagram for TGeomCTBuilder:
TBSPCTBuilder TGeomGroupCTBuilder TGeomPartCTBuilder TBSPNDCTBuilder

Classes

struct  data_t
 Datatype for internal argument transfer. More...

class  TOptClusterSize
 Controls optimal cluster size per tree level. More...


Public Member Functions

 TGeomCTBuilder (const uint n_min=CFG::Cluster::nmin, const uint min_leaf_lvl=0)
 construct cluster tree builder

virtual std::unique_ptr< TClusterTreebuild (const TCoordinate *coord, const idx_t idx_ofs=0) const

virtual std::unique_ptr< TGeomClusterdivide (const TNodeSet &dofs, const uint lvl, const TBBox &bbox, const TOptClusterSize &csize, const idx_t index_ofs, data_t &data) const =0
 recursively build cluster tree for indices in dofs

void adjust_bb (const bool b)
 set flag for adjusting bounding box

void sort_wrt_size (const bool b)
 set flag for sorting son cluster wrt. size


Protected Member Functions

virtual std::unique_ptr< TGeomClusterbuild_leaf (const TNodeSet &dofs, const uint lvl, const idx_t index_ofs, const TBBox &bbox, data_t &data) const
 create a leaf in a clustertree containing indices in dofs

virtual TBBox compute_bb (const TNodeSet &dofs, const data_t &data) const
 compute bounding box of index set defined by dofs

virtual void update_bb (const TNodeSet &dofs, TBBox &bbox, const data_t &data) const
 update bounding box of index set defined by dofs

virtual void check_bb (TBBox &bbox, const data_t &data) const
 check and update bbox in case of degenerate axis, e.g. very small length


Protected Attributes

uint _n_min
 minimal size of a cluster, i.e. not smaller than this

uint _min_leaf_lvl
 minimal level on which leaves may occur

bool _adjust_bb
 flag for adjusting bounding boxes of nodes

bool _sort_wrt_size
 flag for sorting sub clusters w.r.t. size


Member Function Documentation

◆ build()

virtual std::unique_ptr< TClusterTree > build ( const TCoordinate coord,
const idx_t  idx_ofs = 0
) const
virtual

build cluster tree out of given coordinate set

Parameters
coord: geometry information for each index
idx_ofs: start renumbering indices from idx_ofs

Reimplemented in TGeomGroupCTBuilder, and TBSPNDCTBuilder.
