HLIBpro  2.7
TLinearOperator Class Referenceabstract

Base class for all linear operators mapping vectors to vectors. More...

#include <TLinearOperator.hh>

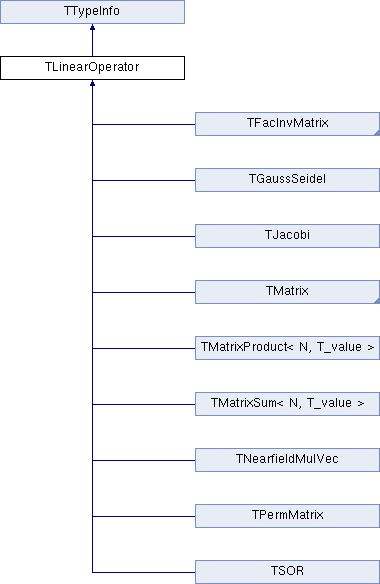

Inheritance diagram for TLinearOperator:
TTypeInfo TFacInvMatrix TGaussSeidel TJacobi TMatrix TMatrixProduct< N, T_value > TMatrixSum< N, T_value > TNearfieldMulVec TPermMatrix TSOR

Public Member Functions

virtual bool is_complex () const =0
 return true, if field type is complex

virtual bool is_self_adjoint () const =0
 return true, of operator is self adjoint

virtual void apply (const TVector *x, TVector *y, const matop_t op=apply_normal) const =0

virtual void apply_add (const real alpha, const TVector *x, TVector *y, const matop_t op=apply_normal) const =0

virtual auto domain_vector () const -> std::unique_ptr< TVector >=0
 return vector in domain space

virtual auto range_vector () const -> std::unique_ptr< TVector >=0
 return vector in range space

- Public Member Functions inherited from TTypeInfo
virtual typeid_t type () const =0
 return type ID of object

virtual bool is_type (const typeid_t t) const
 return true if local object is of given type ID t

virtual std::string typestr () const
 return string representation of type


Detailed Description

Many standard arithmetic operations only depend upon a linear operator providing the mapping between vectors, e.g. iterativ solvers. Instead of requiring a full matrix and hence the need for an implementation of the full matrix algebra, an object of type TLinearOperator is fully sufficient in such cases.

Member Function Documentation

◆ apply()

virtual void apply ( const TVector x,
TVector y,
const matop_t  op = apply_normal
) const
pure virtual

mapping function of linear operator \(A\), e.g. \( y := A(x)\). Depending on op, either \(A\), \(A^T\) or \(A^H\) is applied.

Implemented in TMatrix, TGaussSeidel, TFacInvMatrix, TSOR, TJacobi, TPermMatrix, TMatrixSum< N, T_value >, TMatrixProduct< N, T_value >, and TNearfieldMulVec.

◆ apply_add()

virtual void apply_add ( const real  alpha,
const TVector x,
TVector y,
const matop_t  op = apply_normal
) const
pure virtual

mapping function with update: \( y := y + \alpha A(x)\). Depending on op, either \(A\), \(A^T\) or \(A^H\) is applied.

Implemented in TMatrix, TGaussSeidel, TFacInvMatrix, TSOR, TJacobi, TPermMatrix, TMatrixSum< N, T_value >, TMatrixProduct< N, T_value >, and TNearfieldMulVec.
