HLIBpro  2.7
THelmholtzDLPBF< T_ansatzsp, T_testsp > Class Template Reference

Bilinear form for Helmholtz double layer potential. More...

#include <THelmholtzBF.hh>

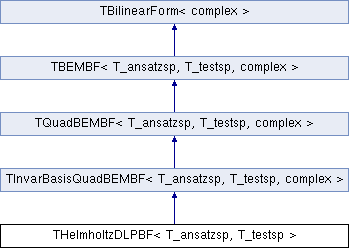

Inheritance diagram for THelmholtzDLPBF< T_ansatzsp, T_testsp >:
TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, complex > TQuadBEMBF< T_ansatzsp, T_testsp, complex > TBEMBF< T_ansatzsp, T_testsp, complex > TBilinearForm< complex >

Public Member Functions

matform_t format () const
 return format of bilinear form, e.g. symmetric

- Public Member Functions inherited from TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, complex >
 TInvarBasisQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order=CFG::BEM::quad_order, const bool dist_ada=CFG::BEM::adaptive_quad_order)

virtual ~TInvarBasisQuadBEMBF ()
 destructor

virtual void eval (const std::vector< idx_t > &row_ind, const std::vector< idx_t > &col_ind, BLAS::Matrix< value_t > &values) const

- Public Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, complex >
 TQuadBEMBF (const ansatzsp_t *ansatzsp, const testsp_t *testsp, const uint order=CFG::BEM::quad_order, const bool dist_ada=CFG::BEM::adaptive_quad_order)

virtual ~TQuadBEMBF ()
 destructor

- Public Member Functions inherited from TBEMBF< T_ansatzsp, T_testsp, complex >
 TBEMBF (const ansatzsp_t *aansatzsp, const testsp_t *atestsp)
 construct bilinear form over function spaces ansatzsp and testsp

virtual ~TBEMBF ()
 destructor

const ansatzsp_t * ansatz_space () const
 return ansatz space

const testsp_t * test_space () const
 return test space

- Public Member Functions inherited from TBilinearForm< complex >
bool is_complex () const
 return true if bilinear form is complex valued


Protected Member Functions

virtual void eval_kernel (const idx_t tri0idx, const idx_t tri1idx, const TGrid::triangle_t &tri0, const TGrid::triangle_t &tri1, const tripair_quad_rule_t *quad_rule, std::vector< complex > &values) const

- Protected Member Functions inherited from TInvarBasisQuadBEMBF< T_ansatzsp, T_testsp, complex >
void compute_basis_func ()
 compute ansatz and test basis functions for all quadrature points

const std::vector< ansatz_value_t > * ansatz_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const

const std::vector< test_value_t > * test_val (const idx_t idx, const TGrid::triangle_t &tri, const uint ncommon, const uint order) const
 same as More...

- Protected Member Functions inherited from TQuadBEMBF< T_ansatzsp, T_testsp, complex >
uint reorder_common (idx_t *vtx0idxs, idx_t *vtx1idxs) const

uint adjust_order (const idx_t *vtx0idxs, const idx_t *vtx1idxs, const uint order) const
 adjust quadrature order order depending on diameter and distance of triangles

const tripair_quad_rule_tquad_rule (const uint ncommon, const uint order) const
 return quadrature rule for ncommon vertices and order order


Additional Inherited Members

- Protected Attributes inherited from TBEMBF< T_ansatzsp, T_testsp, complex >
const ansatzsp_t * _ansatz_sp
 function space for ansatz functions

const testsp_t * _test_sp
 function space for test functions


Detailed Description

template<typename T_ansatzsp, typename T_testsp>
class HLIB::THelmholtzDLPBF< T_ansatzsp, T_testsp >

THelmholtzDLPBF implements the bilinear form for the Helmholtz double layer potential with the kernel function

\[ \frac{e^{i \cdot \kappa \|x-y\|_2} (i\cdot \kappa \|x-y\|_2 - 1) \langle n, y-x \rangle}{\|x-y\|_2^3} \]

.

Member Function Documentation

◆ eval_kernel()

virtual void eval_kernel ( const idx_t  tri0idx,
const idx_t  tri1idx,
const TGrid::triangle_t tri0,
const TGrid::triangle_t tri1,
const tripair_quad_rule_t quad_rule,
std::vector< complex > &  values
) const
protectedvirtual

compute kernel at quadrature points in triangles tri0idx and tri1idx with coordinate indices tri0 and tri1 using quadrature rule quad_rule; the results for all points are returned in values

Implements TQuadBEMBF< T_ansatzsp, T_testsp, complex >.
